The HMW40U humidity and temperature converter adopts a static capacitive polymer film humidity sensor with a measurement range of 0-100% RH (condensation), an accuracy guarantee range of 10-90% RH, and a temperature measurement range of -5-55 ℃. The accuracy is ±0.3 ℃ (25 ℃).
The HMW40 is an indoor wall‑mounted humidity and temperature converter that uses a capacitive polymer‑film sensor for humidity measurement. It provides 4‑20 mA output for humidity and a 0‑5 V output for temperature.
The device operates over a wide temperature range, is housed in ABS resin, and is supplied with a 24 V power source. It is lightweight (≈60 g) and compact (80 × 80 × 26 mm). This manual is written in Japanese.

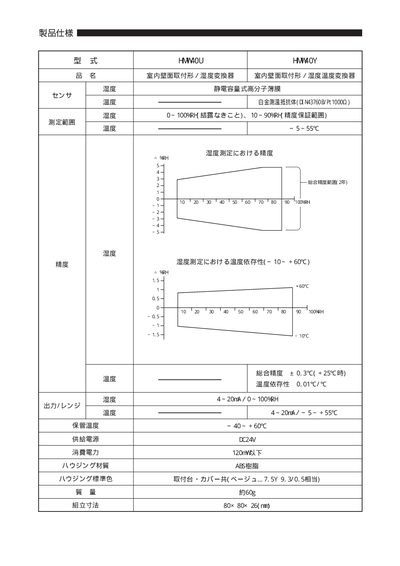

| Model | HMWM0U |
|---|---|
| Humidity sensor type | Capacitive polymer‑film |
| Humidity range | 0‑100 % RH |
| Temperature range (operating) | -40 °C to +60 °C |
| Overall accuracy (humidity) | ±0.3 % RH (at 25 °C) |
| Temperature dependence of humidity measurement | 0.01 % RH/°C |
| Humidity output | 4‑20 mA |
| Supply voltage | 24 V DC |
| Power consumption | 120 mW |
| Housing material | ABS resin |
| Weight | ≈60 g |
| Dimensions (assembled) | 80 × 80 × 26 mm |
The overall humidity accuracy is ±0.3 % RH at 25 °C.
The humidity measurement has a temperature dependence of 0.01 % RH per degree Celsius.
The device can be stored between –40 °C and +60 °C.
