This document describes the features and characteristics of the HMW40U indoor wall-mounted humidity converter, including static capacity polymer film, humidity measurement range of 0-100%RH, and temperature measurement range of -40 to +60℃.
The HMW40 is an indoor wall‑mounted humidity and temperature converter designed for precise environmental monitoring. It uses a capacitive polymer‑film sensor to measure relative humidity and a temperature sensor covering a wide range.
Key features include a 4‑20 mA output proportional to 0‑100 % RH, a measurement accuracy of ±0.5 % RH, and a compact ABS housing weighing about 60 g. The device operates from a 24 V DC supply and consumes approximately 120 mW. This manual is written in Japanese.

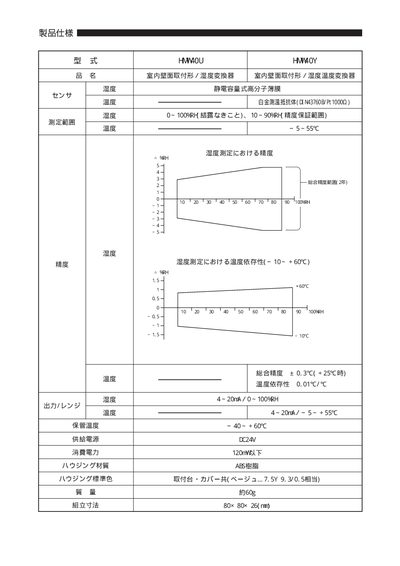

| Model | HMWM0U / HMWMOY |
|---|---|
| Product Name | Indoor wall‑mounted humidity/temperature converter |
| Sensor Type | Capacitive polymer‑film humidity sensor |
| Humidity Range | 0 % – 100 % RH |
| Temperature Accuracy | ±0.3 °C |
| Output | 4‑20 mA (0‑100 % RH) |
| Power Supply | 24 V DC |
| Power Consumption | 120 mW |
| Housing Material | ABS resin |
| Dimensions (W×H×D) | 80 mm × 80 mm × 26 mm |
The HMW40 measures humidity from 0 % to 100 % RH.
It provides a 4‑20 mA current loop proportional to the measured humidity (0‑100 % RH).
Typical power consumption is about 120 mW.
