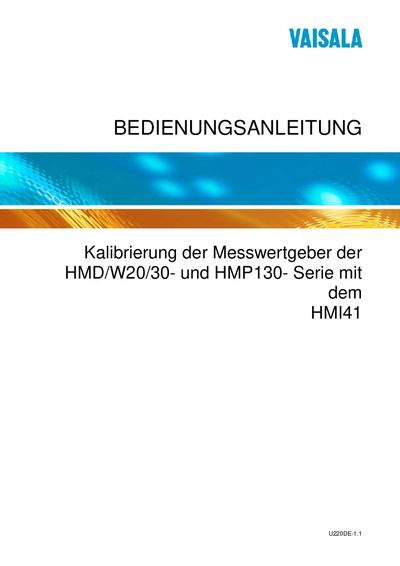

This manual describes the calibration function of the HMI41 for HMD/W20/30- and HMP130-series sensors.
The manual explains how to use the HMI41 with its calibration option to adjust analog measurement transducers of the HMD/W20/30 and HMP130 series. It provides details on the required calibration cables, the selection of calibration functions, and the step‑by‑step procedure for performing a calibration.
The HMI41 can operate in four modes, with function 4 dedicated to calibrating the mentioned analog transducers. The document also covers setup entry, display navigation, and the expected stabilization time for accurate readings. This manual is written in German.
