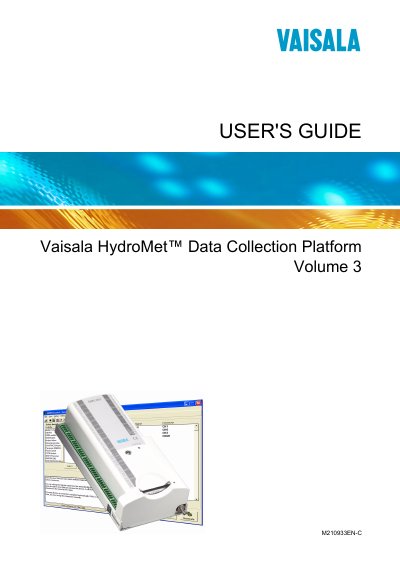

This document is the user's guide for the Vaisala HydroMet™ Data Collection Platform, which provides information on the structure, version information, related manuals, and product-related safety information.
This guide provides detailed information on the Vaisala HydroMet™ Data Collection Platform, including an overview of the hardware, supported communication modules, and sensor configurations. It walks users through configuring modules, telemetry options, and TCP/IP‑based communication.
The manual also contains technical data, wiring diagrams, and troubleshooting procedures for the various modems, Ethernet modules, and sensor interfaces used with the platform.
| Ethernet Communication Module | DSE101 |
|---|---|
| Digital I/O Module | QMI118 |
| RS‑232 Module | DSU232 |
A setup file can be executed from a CompactFlash memory card by selecting the appropriate option in the Lizard Setup Software as described in Chapter 3.
The guide covers the HydroMet Data Collection Platform model M210933EN-C.
