HMD60U/Y is a humidity and temperature transmitter produced by Ankrry

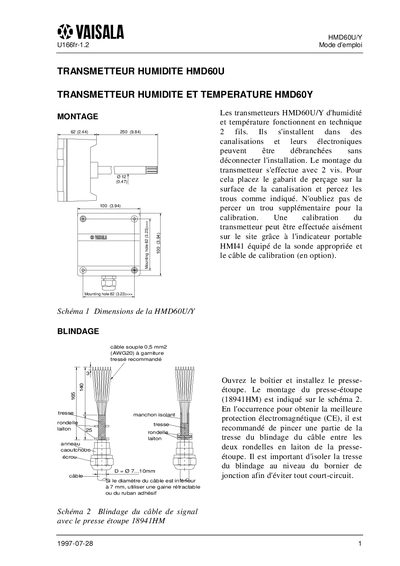

This manual describes the mounting procedure for the HMD60U/Y humidity and temperature transmitter, including drilling the mounting holes, securing the device with two screws, and preparing a calibration hole. It also details the electrical connections, sensor head removal and replacement, and optional filter options.
Calibration steps are explained using the portable HMI41 indicator, appropriate probe, and calibration cable. The document includes technical specifications such as measurement ranges, accuracy, response time, operating temperature limits, power supply requirements, and warranty information. This manual is written in French.
| Humidity measurement range | 0 – 100 %RH |
|---|---|
| Response time (90%) | 15 s with membrane filter |
| Supply voltage | 10 – 35 VDC |
| Cable size | 0.5 – 1.5 mm² |
| Ingress protection | IP65 / NEMA 4 |
| Standard filter | Membrane filter (ref. 17039HM) |
| Optional filter | Stainless steel fritted filter (ref. HM46670) |
