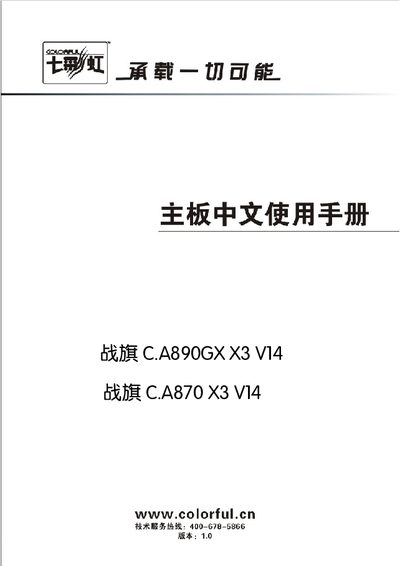

This user manual mainly introduces the hardware installation, driver installation, BIOS settings and other contents of the C.A890GX X3 V14 / C.A870 X3 V14 motherboard.
This manual provides step‑by‑step instructions for assembling and installing the Colorful C.A890GX X3 V14 and C.A870 X3 V14 motherboards. It includes hardware installation, driver setup, and detailed BIOS configuration guidance.
The document also lists the technical specifications of the boards, such as supported CPUs, memory types, expansion slots, and peripheral interfaces, helping users verify compatibility and optimize system performance. This manual is written in Chinese.
| Chipset | 870+SB850 / 890GX+SB850 |
|---|---|
| CPU socket | AM3 |
| Maximum memory speed | DDR3‑1600 (OC) |
| SATA ports | 6 SATAII ports |
| USB ports | 10 USB2.0 ports |
| Network interface | Integrated Gigabit Ethernet |
| Audio | 8‑channel audio codec |
The board includes six SATAII ports for connecting storage devices.
Both models use an AM3 socket for AMD processors.
The motherboard offers ten USB2.0 ports.
