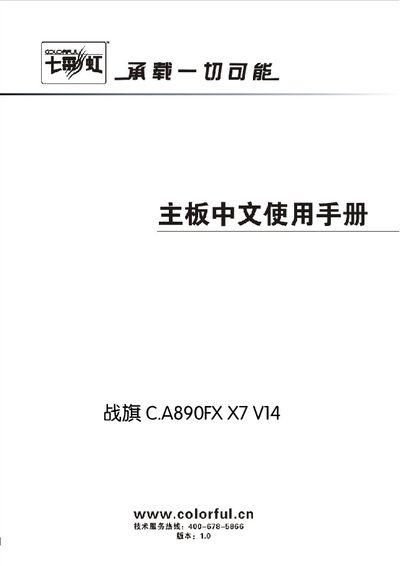

This document is about the installation and setup instructions of the Battle Flag C.A890FX X7 V14 motherboard. It mainly introduces hardware installation, driver installation, BIOS settings, and other topics.
This manual covers the complete setup of the Colorful C.A890FX X7 V14 motherboard, including an introduction to its features, step‑by‑step hardware installation, driver installation instructions, and detailed BIOS (BOS) settings. It also contains appendices for BIOS flashing, DOS‑mode procedures, and common error codes.
The document lists the technical specifications of the board, such as the AMD 890FX+SB850 chipset, AM3 socket support, DDR3 memory configuration, expansion slots, storage interfaces, audio and networking features, as well as contact information for technical support and warranty. This manual is written in Chinese.
| Chipset | AMD 890FX + SB850 |
|---|---|
| CPU Socket | AM3 |
| Supported Memory Speed | DDR3‑1066/1333/1600 |
| USB Ports | 12 USB 2.0 ports (2 front headers) |
| PCI Express Slots | 3 × PCI‑Express x16, 1 × PCI‑Express x1 |
| Additional Expansion Slots | 2 × PCI slots |
| Audio | 8‑channel high‑definition audio codec |
| Network | Integrated Gigabit Ethernet (10/100/1000 Mbps) |
| Other Interfaces | 1 × eSATA, 2 × SPDIF OUT, 1 × RJ45, 1 × FDD |
It uses the AMD 890FX + SB850 chipset.
Create a DOS boot disk, copy the BIOS file and flashing utility to it, boot into DOS, and run the appropriate flash command (e.g., Awd*.exe for Award BIOS).
