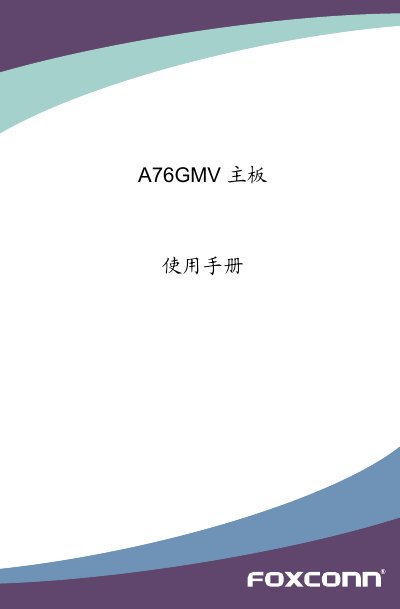

This document is a user manual for the A76GMV motherboard produced by Foxconn. The manual provides detailed information about the environmental usage period, the labeling of toxic and hazardous substances, as well as cautions and warnings.
The Foxconn A76GMV motherboard manual provides detailed instructions for hardware installation, BIOS configuration, and operating system setup. It includes safety warnings, component descriptions, and environmental compliance information.
Key sections cover CPU and memory installation, expansion slot usage, RAID configuration, driver installation, and troubleshooting tips, helping users assemble and maintain the board safely and efficiently. This manual is written in Chinese.
| CPU socket | AM3, supports Phenom II processors |
|---|---|
| Northbridge chipset | AMD 760G |
| Southbridge chipset | SB700 / SB710 |
| Memory slots | 2 x 240‑pin DDR3 DIMM, up to 8 GB, 1333/1066 MHz |
| Expansion slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI |
| Integrated graphics | ATI Radeon HD3000 GPU with Hybrid Graphic technology |
| LAN controller | Realtek RTL8111E Gigabit Ethernet |
| Audio codec | Realtek 662‑GR, supports 5.1 channels and S/PDIF |
| USB ports | 10 × USB 2.0 (4 rear, 6 via internal headers) |
| Form factor | Micro ATX, 24.4 cm × 21.3 cm |
It uses an AM3 socket and supports AMD Phenom II processors.
Set the “OnChip SATA Type” option to “RAID” in the BIOS settings.
