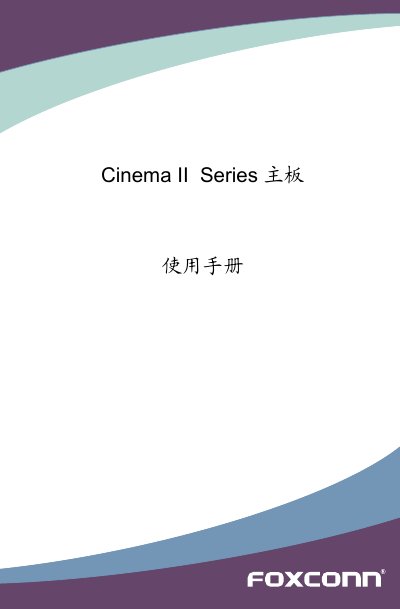

This is a manual for Cinema II Series motherboard
This manual covers the Foxconn Cinema II Premium and Deluxe motherboards, detailing product specifications, layout diagrams, back‑panel ports, and hardware installation procedures such as CPU, memory and expansion‑card installation. It also includes BIOS configuration, RAID setup, and software utilities like FOX ONE and ATI Hybrid CrossFireX.
Safety warnings, environmental compliance information, and contact details for technical support are provided throughout the document, along with troubleshooting tips and a glossary of symbols used in the manual. This manual is written in Chinese.
| Supported CPUs | AMD PhenomII, Athlon II, Athlon X4, Athlon X3, Athlon X2 (AM3) |
|---|---|
| Chipset | Northbridge AMD 785G, Southbridge AMD SB710 |
| Memory Slots | 4 x 240‑pin DDR3 DIMM, up to 16 GB, dual‑channel 1066/1333/1600 MHz |
| Integrated Graphics | ATI Radeon™ 4200 HD GPU |
| Audio | Realtek 8‑channel HDA audio chip, 2/4/5.1/7.1‑channel, S/PDIF output |
| Network | Realtek Gigabit Ethernet controller |
| Expansion Slots | 1 × PCI‑Express x16, 2 × PCI‑Express x1, 1 × PCI |
| SATA Ports | 4 × SATA, 1 × eSATA (hot‑plug, NCQ) |
| USB Ports | 12 × USB 2.0 (6 rear, 6 via internal headers) |
| Form Factor | Micro ATX, 24.4 cm × 24.4 cm |
The board supports AMD Phenom II, Athlon II, Athlon X4, Athlon X3 and Athlon X2 processors in the AM3 socket.
It provides twelve USB 2.0 ports – six on the rear panel and six via internal headers.
The motherboard’s drivers support Microsoft Windows Vista and Windows XP only.
It is a Micro‑ATX board measuring 24.4 cm by 24.4 cm.
