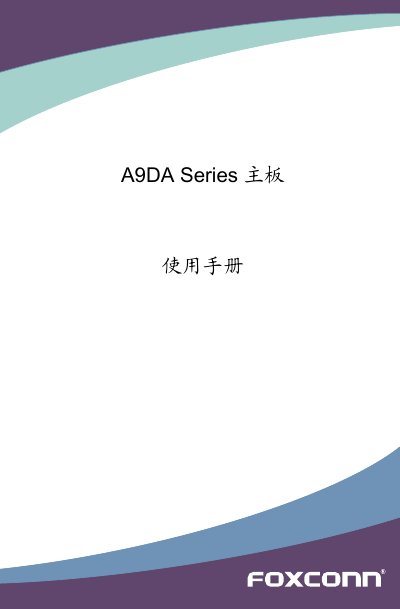

A9DA Series Motherboard User Manual, introduces the features and characteristics of the motherboard and how to use it
This manual provides a complete guide to the Foxconn A9DA Series motherboard. It includes product specifications, a layout diagram, back‑panel connector descriptions, and detailed hardware installation steps such as CPU, memory, and expansion‑card installation.
The document also covers BIOS configuration, RAID setup, driver installation, and troubleshooting. Appendices describe CrossFire™ technology, software utilities, and technical support resources. This manual is written in Chinese.
| CPU support | AM3 AMD processors, up to 140 W |
|---|---|
| Chipset | Northbridge RS880D, Southbridge SB850 |
| Memory slots | 4 × 240‑pin DDR3 DIMM, up to 16 GB, dual‑channel 1600 MHz (OC*) |
| Expansion slots | 2 × PCI‑Express x16, 2 × PCI‑Express x1, 2 × PCI |
| Network controller | Atheros AR8131M Gigabit Ethernet |
| Form factor | Micro ATX, 30.5 cm × 24.4 cm |
The board supports AMD AM3 processors with a maximum power rating of 140 W.
The board is a Micro ATX form factor measuring 30.5 cm by 24.4 cm.
