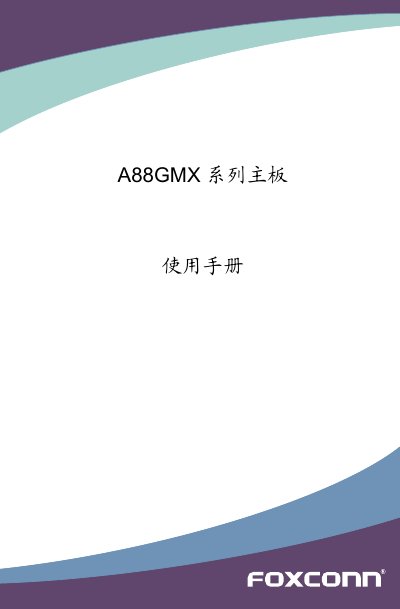

A88GMX series motherboard user manual, this manual contains the function introduction, use instructions, precautions and other information of the motherboard
This manual provides detailed information for the Foxconn A88GMX series motherboard, including product specifications, safety notices, and regulatory compliance. It guides users through hardware installation, BIOS configuration, and software setup.
The document is organized into sections such as product overview, specifications, motherboard layout, hardware installation steps, BIOS settings, RAID configuration, and troubleshooting. It also includes reference tables for connectors, ports, and supported components. This manual is written in Chinese.
| CPU socket | AM3 (AMD series processors) |
|---|---|
| Chipset | Northbridge AMD 880G, Southbridge AMD SB710 |
| Memory slots | 4 DDR3 DIMM slots, up to 16 GB |
| Expansion slots | 1 PCI Express x16, 2 PCI Express x1, 1 PCI |
| Integrated graphics | ATI Radeon HD4250 GPU |
| SATA ports | 5 |
| USB ports | 12 USB 2.0 ports |
| Network controller | Realtek 8111D Gigabit Ethernet |
| Audio codec | Realtek ALC887‑GR |
| Form factor / dimensions | Micro ATX, 24.4 cm × 24.4 cm |
The motherboard supports up to 16 GB of system memory.
It provides 12 USB 2.0 ports (6 rear, 6 via internal headers).
It uses an AM3 socket for AMD series processors.
Yes, it supports RAID 0, RAID 1, RAID 10 and JBOD.
