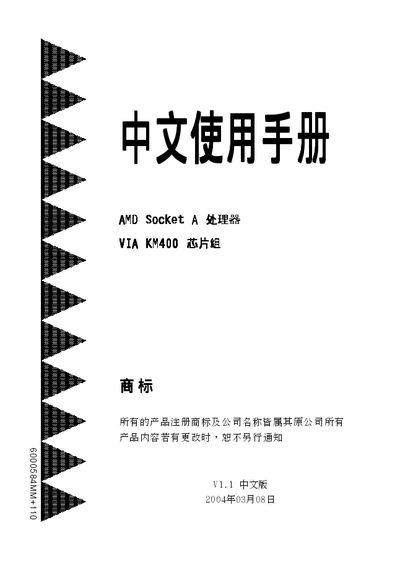

This manual introduces the packaging contents, the mainboard size, input/output connection ports, power switch, system operation block diagram, mainboard specifications, installation, BIOS settings, driver installation, etc. of the motherboard with AMD Socket A processor and VIA KM400 chipset.
This manual covers the packaging contents, board dimensions, and specifications of a Micro ATX motherboard that uses the VIA KM400 chipset with an AMD Socket A CPU. It includes step‑by‑step installation instructions, BIOS configuration guidance, and descriptions of integrated peripherals such as AGP 8X, USB 2.0, and audio interfaces.
Additional sections explain optional features like the B10S power‑saving function, Realtek media player usage, and BIOS update procedures. Appendices provide information on cloning utilities and security file handling. This manual is written in Chinese.
| Form Factor | Micro ATX |
|---|---|
| CPU Socket | Socket A |
| Chipset | VIA KM400 |
| IDE Interface | ATA‑133 IDE x2 |
| LAN Controller | VIA VT6103 RJ‑45 |
| Southbridge | VIA VT8237 / VT8235 |
The board follows the Micro ATX form factor.
It supports AMD Socket A processors.
The motherboard uses the VIA KM400 chipset.
