This document describes the features and characteristics of mainboards based on AMD processors, including Accelerated Graphics Port, Ultra ATA/66/100, and hardware monitoring.

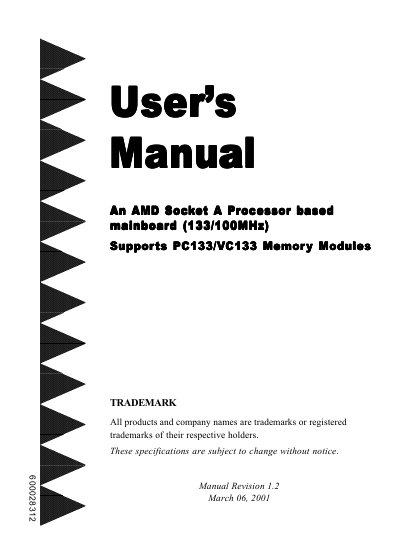

This manual provides an overview of the AMD Socket A mainboard, describing supported AMD Athlon™ and Duron™ processors, the VIA KT133A chipset, memory options, expansion slots, and onboard I/O. It includes a detailed layout, component checklist, and system block diagram to help users understand the board's architecture.
The guide walks through installation steps, BIOS configuration, driver installation, and power‑on/off functions. Appendices contain POST codes and hardware monitoring information for troubleshooting and system maintenance.
| Supported Processors | AMD Athlon™ and Duron™ (Socket A) |
|---|---|
| Chipset | VIA KT133A AGPset (KT133A + VT82C686B) |
| Memory Modules | 168‑pin DIMM, PC133/VC133, 32 MB‑1.5 GB |
| Expansion Slots | PCI x6, ISA x1, AGP x1 |
| Onboard I/O | Keyboard, mouse, floppy, parallel, serial, IR, power‑on controllers |
| Onboard IDE | PCI Bus IDE with Ultra DMA‑66/100 (up to 4 devices) |
| I/O Connectors | PS/2 mouse and keyboard ports |
| USB Ports | 4 USB connectors |
The board supports AMD Athlon™ and Duron™ processors that use the Socket A interface.
It provides six PCI slots, one ISA slot, and one AGP slot.
The board uses 168‑pin DIMM modules for PC133/VC133 memory, supporting 32 MB to 1.5 GB.
Four USB connectors are provided.
