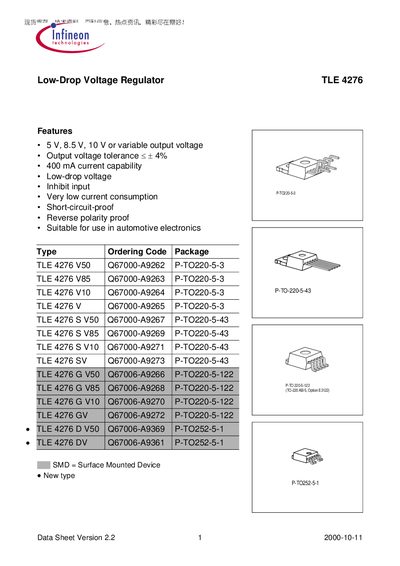

TLE 4276 is a low-drop voltage regulator with features including 5V, 8.5V, 10V, or variable output voltage, 400mA current capability, low-drop voltage, inhibit input, very low current consumption, short-circuit-proof, reverse polarity proof, suitable for use in automotive electronics.
The TLE 4276 is a low‑drop voltage regulator offered in TO‑220, TO‑263 and SOT‑23 packages. It can deliver a fixed output of 5 V, 8.5 V, 10 V or an adjustable voltage, with a tolerance of less than ±4 %. The device supports up to 400 mA output current and includes an inhibit input that reduces quiescent current below 10 µA when switched off.
The regulator features built‑in protection against overload, over‑temperature, short‑circuit and reverse polarity. It operates from an input voltage range of 4 V to 42 V, and its dropout voltage is typically 250‑500 mV. Electrical characteristics such as PSRR (≈54 dB at 100 Hz) and temperature range (‑40 °C to 150 °C) are documented, along with pin assignments and recommended external component values for stable operation.
| Output voltage options | 5 V, 8.5 V, 10 V or adjustable |
|---|---|
| Output voltage tolerance | ±4 % |
| Maximum output current | 400 mA |
| Quiescent current (inhibit off) | < 10 µA |
| Power‑supply rejection ratio (PSRR) | ≈54 dB at 100 Hz |
| Protection features | Overload, over‑temperature, reverse polarity, short‑circuit |
The device can supply up to 400 mA of output current.
The regulator includes overload, over‑temperature, reverse‑polarity and short‑circuit protection.
When inhibited, the current consumption drops below 10 µA.
