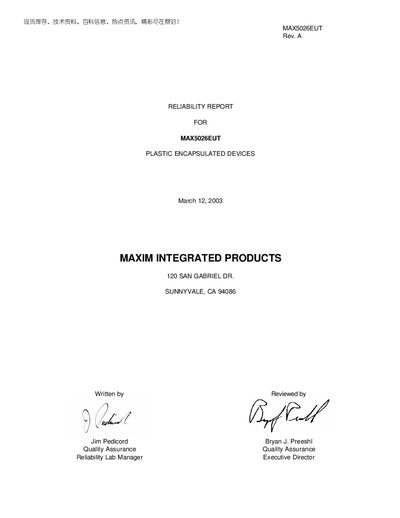

This report describes the reliability standards for MAX5026EUT, including device description, manufacturing information, packaging information, die information, quality assurance information and reliability evaluation.
The Maxim MAX5026EUT is a constant‑frequency, pulse‑width‑modulating boost converter designed for low‑voltage systems that require a locally generated high voltage. It operates from as low as 3 V, switches at 500 kHz, and uses a 40 V lateral DMOS device suitable for output voltages up to 36 V.
The document provides detailed manufacturing, packaging, and quality‑assurance information, including absolute‑maximum ratings, reliability evaluation results, moisture‑resistance testing, ESD and latch‑up testing, and pin‑test procedures. All data are presented in compliance with Maxim’s reliability monitoring program.
| Operating Voltage Range | 3 V to 12 V |
|---|---|
| Switching Frequency | 500 kHz |
| Maximum Output Voltage | up to 36 V |
| Dimensions | 60 × 41 mils |
The device operates from as low as 3 V up to about 12 V.
It switches at a constant frequency of 500 kHz.
