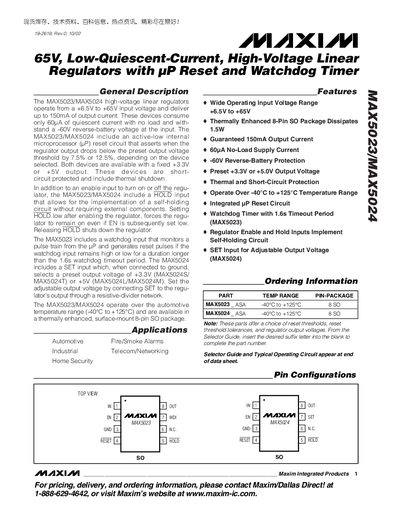

The MAX5023/MAX5024 high-voltage linear regulators operate from a +6.5V to +65V input voltage and deliver up to 150mA of output current.
The MAX5023 and MAX5024 are high‑voltage linear regulators that operate from a +6.5 V to +65 V input and provide up to 150 mA of output current while consuming only 60 µA of quiescent current. They include an active‑low internal microprocessor reset circuit and, for the MAX5023, a watchdog timer that asserts a reset after a 1.6 s timeout.
Both devices are available in fixed +3.3 V or +5 V output versions, with the MAX5024 also supporting an adjustable output via an external resistor‑divider. Additional features include reverse‑battery protection to –60 V, thermal shutdown, enable and hold inputs for self‑holding operation, and a thermally enhanced 8‑pin SO package suitable for automotive temperature ranges (-40 °C to +125 °C).
| Input Voltage Range | 6.5 V – 65 V |
|---|---|
| Maximum Output Current | 150 mA |
| Quiescent Current (no load) | 60 µA |
| Operating Temperature Range | -40 °C to +125 °C |
| Package | 8‑pin SO (thermally enhanced) |
Both devices are offered with fixed output options of +3.3 V or +5 V.
