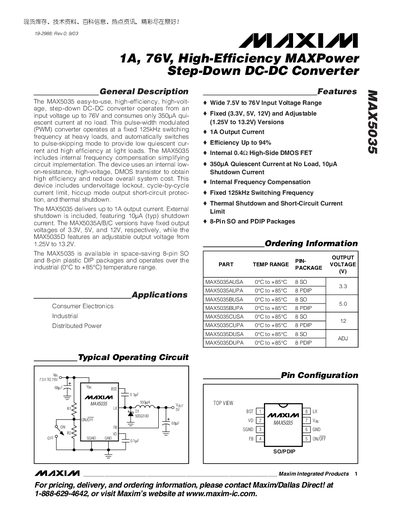

The MAX5035 is a high-efficiency, high-voltage, step-down DC-DC converter from Texas Instruments. It operates from an input voltage of up to 76V and has a maximum output current of 1A.
The MAX5035 is a high‑efficiency, high‑voltage step‑down DC‑DC converter that operates from an input voltage up to 76 V and delivers up to 1 A output current. It uses an internal low‑resistance DMOS transistor, provides internal frequency compensation, and includes protection features such as undervoltage lockout, cycle‑by‑cycle current limit, hiccup mode short‑circuit protection, and thermal shutdown.
The device is offered in 8‑pin SO and 8‑pin PDIP packages, works over an industrial temperature range of 0 °C to +85 °C, and achieves up to 94 % efficiency. Fixed‑output versions (MAX5035A/B/C) provide 3.3 V, 5 V, or 12 V, while the MAX5035D version offers an adjustable output from 1.25 V to 13.2 V.
| Input Voltage Range | 7.5 V to 76 V |
|---|---|
| Maximum Output Current | 1 A |
| Quiescent Current (no load) | 350 µA |
| Switching Frequency | 125 kHz (fixed) |
| Efficiency | up to 94 % |
| Shutdown Current (typical) | 10 µA |
| Package Types | 8‑pin SO and 8‑pin PDIP |
The MAX5035 can accept an input voltage up to 76 V.
The device can reach up to 94 % efficiency under specified conditions.
It is offered in 8‑pin SO and 8‑pin plastic DIP (PDIP) packages.
The converter draws only 350 µA of quiescent current at no load.
