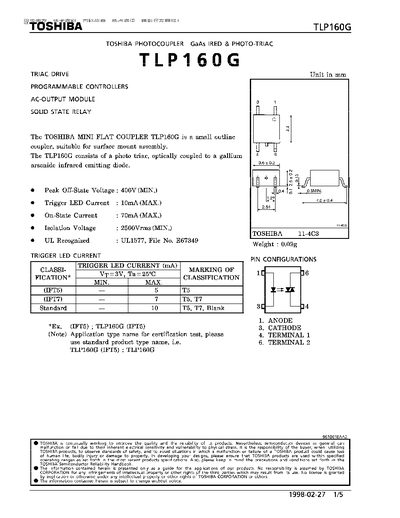

This datasheet describes the Toshiba TLP160G miniature flat‑coupler, a surface‑mount phototriac optically coupled to a GaAs infrared emitting diode. It lists the device's key electrical parameters, maximum ratings, and recommended operating conditions for reliable circuit design.
The document includes tables of maximum ratings, individual and coupled electrical characteristics, and graphs of performance versus temperature and pulse width, helping designers select appropriate operating points and ensure compliance with safety standards.
| Peak Off‑State Voltage | 400 V (MIN) |
|---|---|
| Trigger LED Current | 10 mA (MAX) |
| On‑State Current | 70 mA (MAX) |
| Isolation Voltage | 2500 Vrms (MIN) |
| Forward Current (IF) | 50 mA |
| Reverse Voltage (VR) | 5 V |
| Junction Temperature (Tj) | 125 °C |
| Storage Temperature Range | -55 °C to 125 °C |
| Operating Temperature Range | -40 °C to 100 °C |
| Lead Soldering Temperature | 260 °C (10 s) |
| Supply Voltage | 120 VAC |
The device is rated for a minimum peak off‑state voltage of 400 V.
It provides a minimum isolation voltage of 2500 Vrms.
The recommended supply voltage is 120 VAC.
The maximum forward current (IF) is 50 mA.
