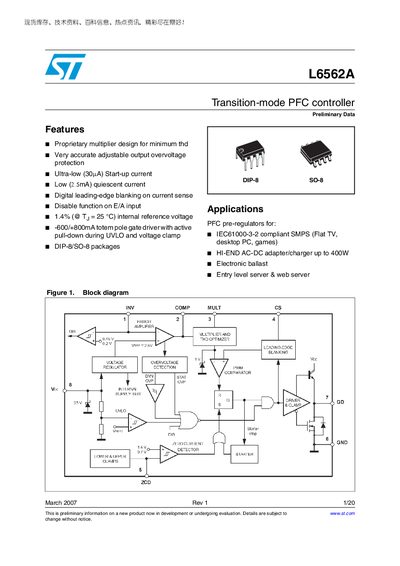

L6562A is a transition-mode PFC controller from ST with the following features: proprietary multiplier design for minimum thd, very accurate adjustable output overvoltage protection, ultra-low (30µA) start-up current, low (2.5mA) quiescent current, digital leading-edge blanking on current sense, disable function on E/A input, 1.4% (@ TJ = 25 °C) internal reference voltage, -600/+800mA totem pole gate driver with active pull-down during UVLO and voltage clamp.
The L6562A is a current‑mode PFC controller operating in Transition Mode (TM). It offers a proprietary multiplier for low THD, an accurate 1.4 % internal reference, ultra‑low start‑up current and a disable function for energy‑saving applications. The device includes a totem‑pole output stage capable of 600 mA source and 800 mA sink current, suitable for driving MOSFETs or IGBTs in high‑power SMPS.
The document provides a full description, pin settings, maximum ratings, thermal data, electrical characteristics, application information, mechanical data and ordering codes, along with revision history and legal notices.
| Supply voltage range | 10.5 V – 22 V |
|---|---|
| Start‑up current | 30 µA – 60 µA |
| Quiescent current | 2.5 mA – 3.75 mA |
| Operating temperature range | -40 °C to 150 °C |
The start‑up current is specified as 30 µA to 60 µA before turn‑on.
The quiescent current after turn‑on is between 2.5 mA and 3.75 mA.
