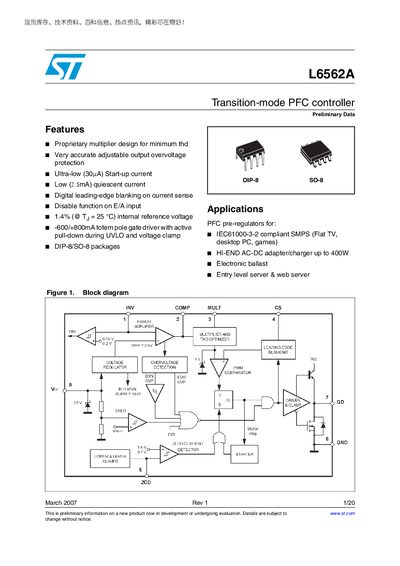

This document provides preliminary information on a new product that is currently under development or evaluation. The details of the product are subject to change. The product is a transition-mode power factor correction (PFC) controller with features such as a proprietary multiplier design for minimum total harmonic distortion, adjustable output overvoltage protection, ultra-low startup current, low quiescent current, and more. It is suitable for applications such as PFC pre-regulators for IEC61000-3-2 compliant SMPS, high-end AC-DC adapter/charger up to 400W, electronic ballast, entry-level server, and web server.
The L6562A is a current‑mode PFC controller that operates in Transition Mode. It offers low THD, ultra‑low start‑up current and a built‑in disable function for energy‑saving applications.
The document provides detailed pin descriptions, maximum ratings, thermal data, electrical characteristics, and example applications, making it a complete reference for designers integrating the device into SMPS solutions.
| Quiescent current | 2.5 mA – 3.75 mA |
|---|---|
| Totem‑pole output current | 600 mA source, 800 mA sink |
| Operating temperature range | -40 °C to 150 °C |
The internal reference voltage has an accuracy of 1.4 % at 25 °C.
Yes, it includes a disable function suitable for remote ON/OFF control.
