STMicroelectronics L6561 Power Factor Corrector Datasheet

L6561 is the improved version of the L6560 standard Power Factor Corrector. It has a superior performance multiplier, making the device capable of working in wide input voltage range applications (from 85V to 265V) with an excellent THD. Furthermore the start up current has been reduced at few tens of mA and a disable function has been implement- ed on the ZCD pin, guaranteeing lower current consumption in stand by mode. Realised in mixed BCD technology, the chip gives the following benefits: – micro power start up current – 1% precision internal reference voltage – (Tj = 25°C) – Soft Output Over Voltage Protection – no need for external low pass filter on the cur- rent sense – very low operating quiescent current minimis- es power dissipation

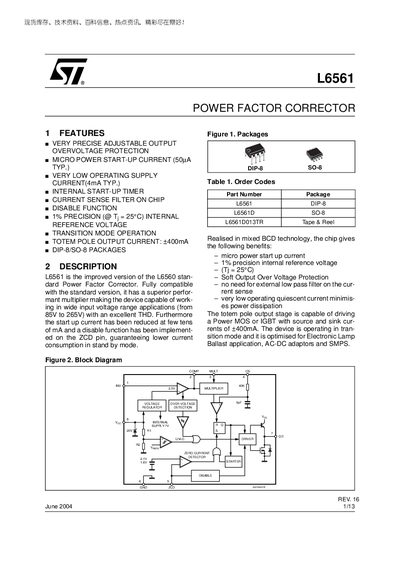

STMicroelectronics L6561 Power Factor Corrector Datasheet - cover page
Brand
STMicroelectronics
Category
Power Management
Document type
Datasheet
Language
English
Pages
13
File format
PDF
File size
169 KB
Published
01 April, 2012
Updated
01 October, 2023
Model
L6561
MD5 checksum
A5EF29684BB39288A008C1D5DB7EE589

About this manual

This datasheet describes the L6561 Power Factor Corrector, an improved version of the L6560 with very precise adjustable output, micro‑power start‑up current and a disable function. It outlines the device’s operating principles, pin functions and protection features such as over‑voltage protection.

The document includes absolute maximum ratings, detailed electrical characteristics, order codes, typical application circuits, evaluation results and revision history, allowing designers to integrate the L6561 into AC‑DC adaptors, lamp ballasts and SMPS designs.

What's inside

  • Features
  • Description
  • Order Codes
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Pin Description
  • Thermal Data
  • Over‑Voltage Protection
  • Disable Function
  • Typical Application Circuits

Specifications

Input voltage range85 V – 265 V
Typical start‑up current50 µA typ.
Quiescent supply current4 mA typ.
Totem‑pole output current400 mA source & sink
Disable‑mode supply current1.4 mA typ.

Frequently asked questions

What is the typical start‑up current of the L6561?

The L6561 draws about 50 µA typical start‑up current.

How can the L6561 be disabled?

Grounding the ZCD pin disables the device and reduces the supply current to roughly 1.4 mA typical.

What is the maximum output current of the L6561?

The totem‑pole output stage can source and sink up to 400 mA.

What input voltage range does the L6561 support?

It operates from 85 V up to 265 V input.
