Fairchild LM2902/LM324/LM324A/LM224/LM224A Quad Operational Amplifier Datasheet

LM324/LM324A,LM2902,LM224/LM224A consist of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range.

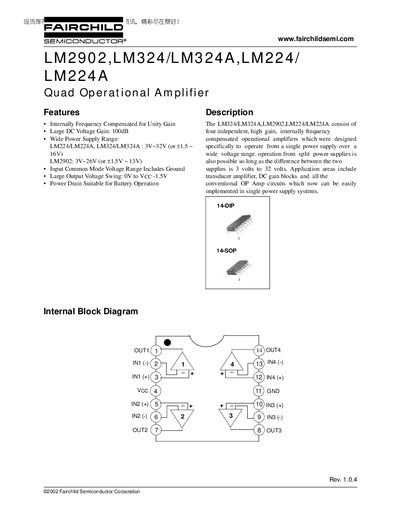

Fairchild LM2902/LM324/LM324A/LM224/LM224A Quad Operational Amplifier Datasheet - cover page
Brand
Fairchild
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
12
File format
PDF
File size
155 KB
Published
01 April, 2012
Updated
30 September, 2023
MD5 checksum
1505BFA0A41F9E4200386E97C9CA333E

About this manual

The Fairchild quad operational amplifiers LM2902, LM324/LM324A, LM224/LM224A provide internally frequency‑compensated unity‑gain operation, high DC voltage gain and a wide supply voltage range. They are designed for single‑supply operation and are suitable for battery‑powered circuits.

The document lists absolute maximum ratings, detailed electrical characteristics, typical performance curves and ordering information for the 14‑DIP and 14‑SOP packages. It also includes a disclaimer and life‑support policy.
