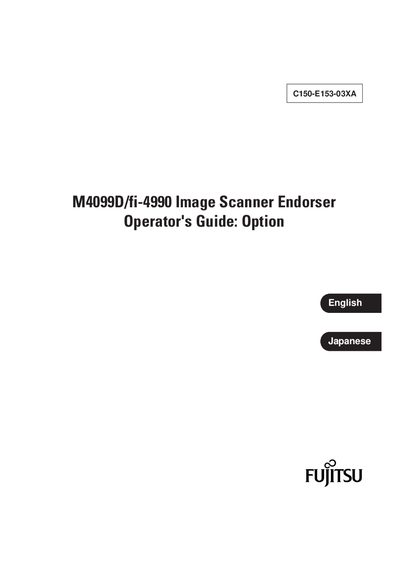

This document is the operator's guide for the M4099D/fi-4990 Image Scanner Endorser. It provides specifications such as printing method, maximum number and size of printed characters, and printing area.
The Endorser option adds printable characters such as letters, numbers and symbols to the backside of scanned documents. It uses a thermal ink‑jet print head and can print up to 30 characters per line with adjustable character size and pitch.
The manual explains how to enable the Endorser, set the initial print count, reset the counter, adjust the printing position, and manage the ink‑counter life. All settings are accessed through the scanner’s Setup mode using the operator panel.
| Printing Method | Thermal inkjet printing |
|---|---|
| Printed Characters | Alphabet A‑Z, numeric 0‑9, symbols |
| Maximum Characters per Line | 30 |
| Character Height | 2.9 mm |
| Character Width | 2.34 mm |
| Character Pitch | About 3.9 mm |
| Printing Area | Backside of document |
Enter Setup mode, select “Endorser Reset”, choose YES, and press ENTER to reset the print number to the initial value.
An “Ink empty” alarm sounds; you must replace the print head and perform an “Ink counter reset” in Setup mode.
In Setup mode, navigate to “Endorser Initial Setting” and toggle it ON or OFF, then press ENTER to save.
