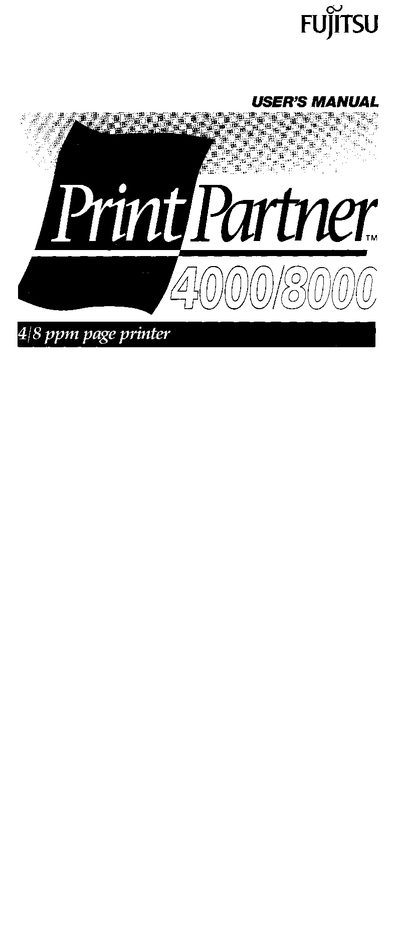

This manual covers safety precautions, proper power connections, and environmental requirements for the Fujitsu PrintPartner 4000/8000 printer. It explains how to unpack, install the print unit, connect power and interface cables, and configure the printer for use with a computer.
Later sections describe the control panel functions, paper handling options, interface options (parallel, serial, Ethernet, LocalTalk), routine maintenance tasks such as cleaning the drum and corona wire, and troubleshooting steps for common error conditions and print‑quality problems.
| Printing speed | 4–8 pages per minute |
|---|---|
| Maximum power consumption | 500 watts |
| Parallel interface cable length | 3 meters (10 feet) max |
| Serial interface cable length | 15 meters (50 feet) max |
Try to reorient or relocate the receiving antenna, increase the distance between the printer and the receiver, or connect the printer to a different circuit; if the problem persists, consult a radio/TV technician.
The parallel interface cable may be up to 3 meters (10 feet) long, and the serial interface cable may be up to 15 meters (50 feet) long.
Use only the supplied power cord with a properly grounded outlet, ensure the printer’s rated voltage matches the outlet, keep the printer away from water, heat sources, and direct sunlight, and disconnect power when not in use.
