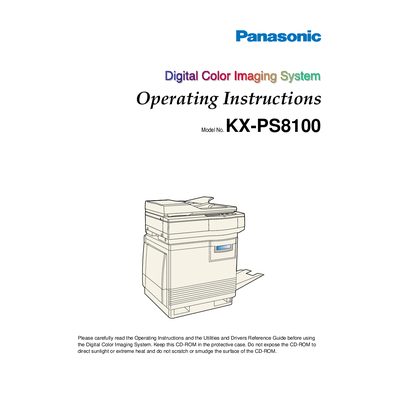

This is a user manual for Panasonic Digital Color Imaging System KX-PS8100
This manual provides the operating instructions, safety information, licensing terms, and software licensing details for the Panasonic KX-PS8100 Digital Color Imaging System, which includes the Color Laser Printer KX-PS8101 and the Color Scanner KX-PS8102. It also contains FCC compliance notes, warranty information, and contact details for technical support.
The document includes hardware specifications, installation guidelines, panel overviews, and detailed procedures for using the printer and scanner functions. Appendices list power requirements, environmental limits, dimensions, weight, noise level, and interface options such as SCSI and parallel connections.
| Power consumption (Scanning) | 70 W max |
|---|---|
| Power consumption (Standby) | 33 W |
| Power consumption (Power Saver mode) | 30 W |
| Weight (with ADF) | 22.5 kg (49.5 lbs) |
| Dimensions (H×D×W) | 241 mm × 425 mm × 513 mm |
| Operating temperature | 10°C to 32.5°C |
| Noise level (with ADF) | 53 dB(A) |
Panasonic provides a 90‑day warranty for the software media, covering defects in materials and workmanship.
Call the end‑user technical support number 1‑888‑744‑2424 during East Coast business hours (9:00 AM to 7:00 PM).
The system includes a flatbed color CCD scanner.
