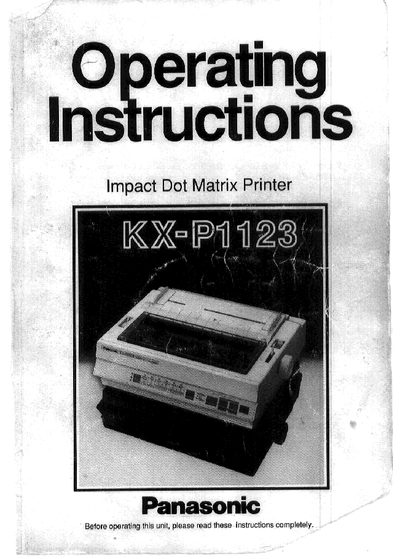

This manual introduces the Panasonic KX-P1123 dot matrix printer, describing its features, specifications, and the EZ Set Operator Panel that controls printing functions. It is intended for safe installation, proper wiring, and effective operation of the printer in office environments.
The document covers safety warnings, mains wiring color codes, unpacking, mounting, paper handling, control codes, software emulation modes, maintenance procedures, and optional accessories. Detailed specifications, font options, and interface options are listed, along with troubleshooting and service information.
| Interface | Centronics parallel |
|---|---|
| Optional Interface | RS-232C / Serial interface board |
| Print fonts | 3 Draft (Pica, Elite, Micron) and 4 Letter Quality (Courier, Prestige, Bold PS, Script) |
| Software emulation | Epson LQ-850 and IBM Proprinter X24 |
| Character sets | 96 ASCII, 96 Italic ASCII, 32 International, 32 Italic International, 158 IBM special |
| Dot configuration | 1/127 inch (0.2 mm) |
Connect the green‑and‑yellow wire to the earth terminal (E), the blue wire to the neutral terminal (N), and the brown wire to the live terminal (L).
The printer has a built‑in Centronics parallel interface and can use an optional RS‑232C/Serial interface board.
The printer provides three draft fonts (Pica, Elite, Micron) and four letter‑quality fonts (Courier, Prestige, Bold PS, Script).
