The ULN2001, ULN2002, ULN2003 and ULN2004 are high voltage, high current darlington arrays each containing seven open collector darlington pairs with common emitters. Each channel rated at 500mA and can withstand peak currents of 600mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout.

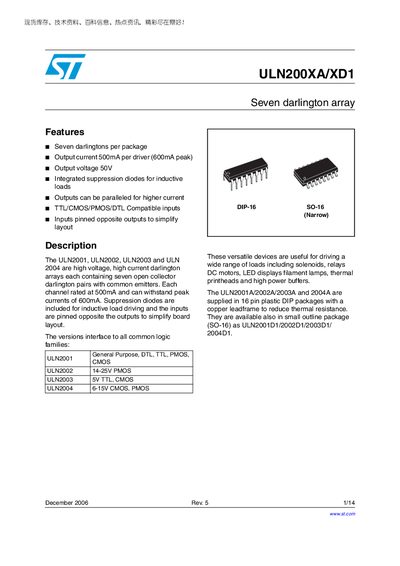

The ULN200XA/XD1 is a seven‑channel darlington array designed for driving loads such as solenoids, relays, DC motors, LED displays, filament lamps, and thermal printheads. It offers 500 mA continuous collector current per driver and includes integrated suppression diodes for inductive loads.
The document contains sections on features, pin configuration, maximum ratings, electrical characteristics, test circuits, and revision history, along with legal and warranty information. Key specifications such as output voltage, temperature ranges, and package options (DIP‑16 and SO‑16) are listed in detail.
| Output voltage | 50 V |
|---|---|
| Continuous collector current | 500 mA |
| Operating ambient temperature range | -20 to 85 °C |
| Storage temperature range | -55 to 150 °C |
| Junction temperature | 150 °C |
| Thermal resistance (junction‑ambient) | 70 °C/W |
| Number of channels | 7 |
The device can handle an output voltage of up to 50 V.
It contains seven darlington channels.
Each driver is rated for a continuous collector current of 500 mA.
