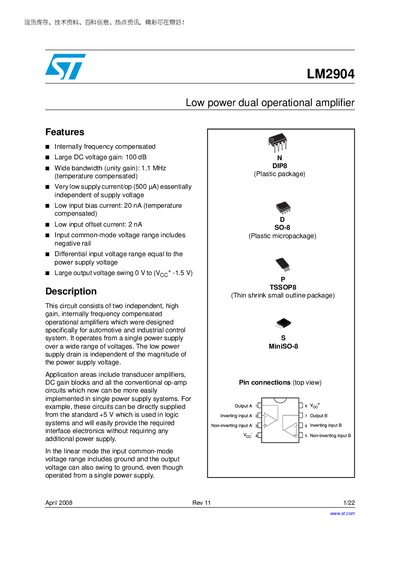

LM2904 is a low power dual operational amplifier with features such as internal frequency compensation, large DC voltage gain, wide bandwidth, very low supply current, etc. It is designed for automotive and industrial control systems and can operate from a single power supply. It is suitable for transducer amplifiers, DC gain blocks, and other conventional op-amp circuits.
The LM2904 is a low‑power dual operational amplifier designed for automotive and industrial control systems. It features internally frequency‑compensated stages, a large DC voltage gain of 100 dB, wide bandwidth of 1.1 MHz, very low supply current and low input bias and offset currents.
The document lists absolute maximum ratings, electrical characteristics, typical single‑supply applications, macromodel information, and package details for DIP8, SO‑8, TSSOP8 and MiniSO‑8 versions. Ordering information and revision history are also included.
| Supply voltage range | 3 V to 30 V |
|---|---|
| Input bias current | 20 nA |
| Input offset current | 2 nA |
| Gain bandwidth product | 1.1 MHz |
| Output voltage swing | 0 V to (Vout − 1.5 V) |
The LM2904 operates from a supply voltage of 3 V to 30 V.
The input bias current is 20 nA.
The output can swing from 0 V up to (Vout − 1.5 V).
