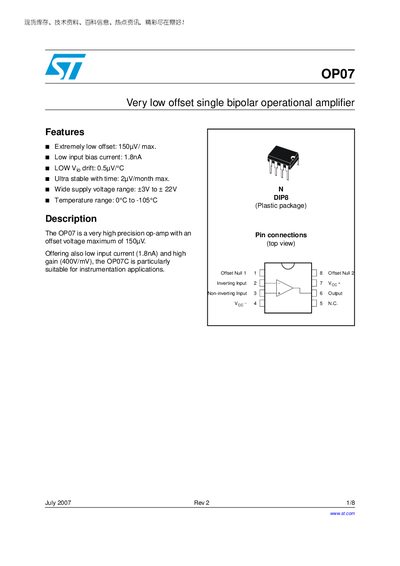

The OP07 is a very high precision op-amp with an offset voltage maximum of 150µV. Offering also low input current (1.8nA) and high gain (400V/mV), the OP07C is particularly suitable for instrumentation applications.
The OP07 is a very high‑precision, low‑offset bipolar operational amplifier offering an offset voltage as low as 150 µV and an input bias current of 1.8 nA, making it suitable for instrumentation applications. It operates from a wide supply range of +3 V to +22 V and functions over a temperature span from 0 °C to –105 °C.
The document includes sections on features, pin connections, absolute maximum ratings, electrical characteristics, package dimensions, and ordering information, along with revision history and legal notices.
| Maximum offset voltage | 150 µV |
|---|---|
| Input bias current | 1.8 nA |
| Supply voltage range | +3 V to +22 V |
| Operating temperature range | 0 °C to –105 °C |
The OP07 can be powered up to +22 V.
The input bias current is 1.8 nA.
The OP07 is supplied in a DIP8 plastic package.
