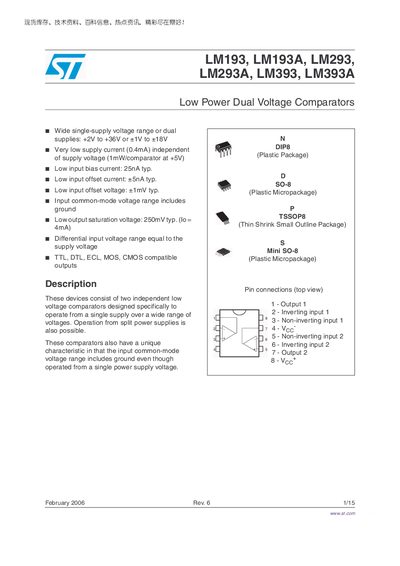

LM193/LM193A/LM293/LM293A/LM393/LM393A are low-power dual-voltage comparators with wide power-supply voltage ranges, including single and dual supplies, from +2V to +36V or ±1V to ±18V.
The LM193/LM193A, LM293/LM293A, LM393/LM393A are low‑power dual‑voltage comparators that operate from a single supply over a wide range (+2 V to +36 V or +1 V to +18 V) and can also be used with split supplies. They feature very low supply current (0.4 mA), low input bias current (25 nA typ.), low input offset voltage (±1 mV typ.) and low output saturation voltage (250 mV typ.). The input common‑mode voltage range includes ground, making them suitable for TTL, DTL, ECL, MOS and CMOS logic families.
The datasheet lists order codes for various package options (SO‑8, DIP‑8, TSSOP‑8, Mini‑SO‑8, etc.), absolute maximum ratings, and detailed electrical characteristics such as maximum output current (~20 mA), operating temperature ranges (‑55 °C to +125 °C for LM193, ‑40 °C to +105 °C for LM293, up to +70 °C for LM393) and storage temperature range (‑65 °C to +150 °C). Revision history and legal notices are also included.
| Supply Voltage Range | +2 V to +36 V or +1 V to +18 V |
|---|---|
| Supply Current (typical) | 0.4 mA |
| Input Bias Current | 25 nA typ. |
| Input Offset Voltage | ±1 mV typ. |
| Output Saturation Voltage | 250 mV typ. |
| Input Common‑Mode Voltage Range | Includes ground |
| Maximum Output Current | ≈20 mA |
| Operating Temperature Range (LM193) | -55 °C to +125 °C |
| Storage Temperature Range | -65 °C to +150 °C |
They operate from +2 V to +36 V (single supply) or +1 V to +18 V (dual supply).
The typical supply current is 0.4 mA per comparator.
The maximum output current is approximately 20 mA.
