The NE555 is a highly stable controller capable of producing accurate time delays or oscillation. It has low turn-off time, maximum operating frequency greater than 500kHz, timing from microseconds to hours, operates in both astable and monostable modes, high output current can source or sink 200mA, adjustable duty cycle, TTL compatible, and temperature stability of 0.005% per °C.

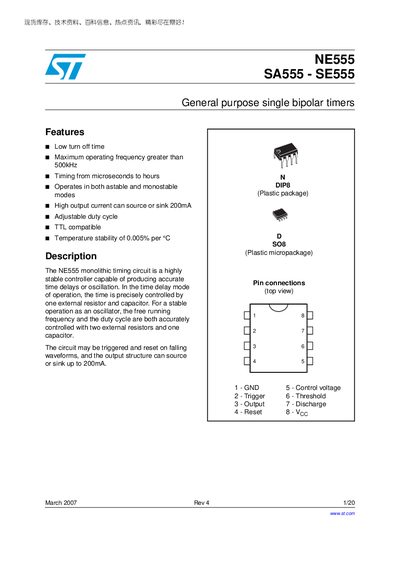

The NE555 family (NE555, SA555, SE555) are general‑purpose single bipolar timers available in a plastic DIP‑8 package. They operate in astable or monostable modes, support timing from microseconds to hours, and can source or sink up to 200 mA output current.
The document lists absolute maximum ratings, operating conditions, detailed electrical characteristics, package information, and ordering codes for each variant, along with revision history and legal notices.
| Supply voltage (NE555) | 4.5 V to 16 V |
|---|---|
| Supply voltage (SA555) | 4.5 V to 16 V |
| Supply voltage (SE555) | 4.5 V to 18 V |
| Operating temperature range (NE555) | 0 °C to 70 °C |
| Operating temperature range (SA555) | -40 °C to 105 °C |
| Operating temperature range (SE555) | -55 °C to 125 °C |
| Maximum output current | 200 mA (source or sink) |
| Timing range | Microseconds to hours |
| Package type | DIP‑8 plastic |
The timer can source or sink up to 200 mA of output current.
They are available in a plastic DIP‑8 package.
