This product is a low power dual voltage comparator with very low supply current, independent low voltage comparators, designed to operate from a single supply over a wide range of voltages.
The LM193, LM193A, LM293, LM293A, LM393 and LM393A are low‑power dual‑voltage comparators that operate from a single supply ranging from +2 V to +36 V (or +1 V to +18 V) and feature very low supply current (0.4 mA typical at +5 V). They offer low input bias current (25 nA typ.), low input offset voltage (+‑1 mV typ.) and output saturation voltage of 250 mV typ.

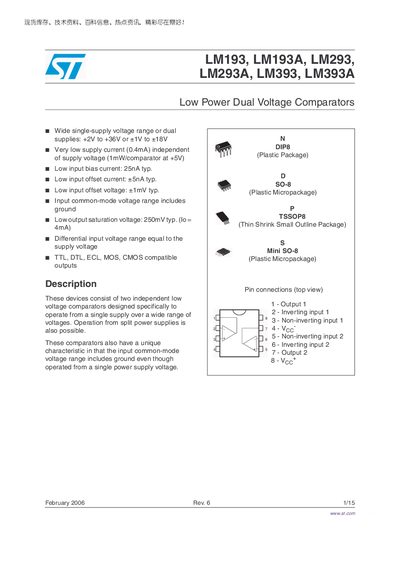

The document includes order codes for each device, schematic diagrams, absolute maximum ratings, detailed electrical characteristics, typical application circuits, and a revision history. It is intended for designers needing precise performance data and part selection information.
| Input bias current | 25 nA typ. |
|---|---|
| Input offset voltage | ±1 mV typ. |
| Output saturation voltage | 250 mV typ. |
| Maximum output current | ≈20 mA |
LM393AD/LM393ADT (SO‑8, tube or tape & reel), LM393D/LM393DT (SO‑8, tube or tape & reel), LM393N (DIP‑8, tube), LM393PT (TSSOP‑8, tape & reel), LM393ST (Mini SO‑8, tape & reel), LM393YDT/YD (SO‑8, automotive grade).
The comparators can handle approximately 20 mA of output current.
