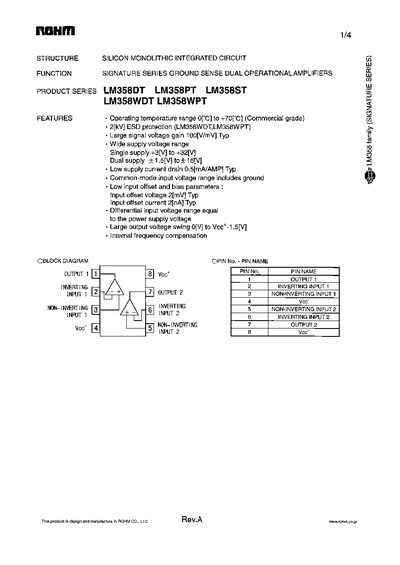

The LM358 series from ROHM includes the LM358DT, LM358PT, LM358ST, LM358WDT and LM358WPT operational amplifiers. They offer a wide supply voltage range, low supply current, and typical large‑signal voltage gain of 100 V/mV. Features include 2 kV ESD protection (for W‑type packages), ground‑sense capability, and low input offset and bias parameters.
The devices operate from single supplies of +3 V to +32 V or dual supplies of +1.5 V to +16 V, with an operating temperature range from –40 °C to +70 °C (commercial grade). Electrical characteristics, absolute maximum ratings, and application examples are provided, along with contact information for ROHM sales offices worldwide.
| Supply Voltage (Single) | +3 V to +32 V |
|---|---|
| Supply Voltage (Dual) | +1.5 V to +16 V |
| Operating Temperature Range | –40 °C to +70 °C |
| Low Supply Current Drain | 0.5 mA typ |
| Input Offset Voltage | 2 mV typ |
| Input Offset Current | 2 nA typ |
| Large Signal Voltage Gain | 100 V/mV typ |
The LM358 series operates from –40 °C up to +70 °C (commercial grade).
They can be powered from a single supply of +3 V to +32 V or from dual supplies of +1.5 V to +16 V.
The typical input offset voltage is 2 mV.
