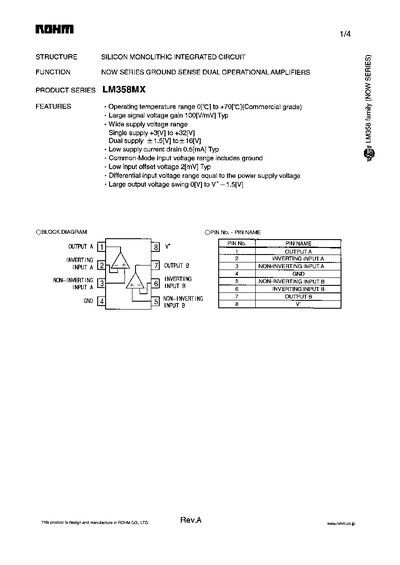

The LM358MX dual operational amplifier offers a large signal voltage gain of 100 V/mV, low supply current drain of 0.5 mA, and a common‑mode input range that includes ground. It operates from a single supply of +3 V to +32 V or a dual supply of ±1.5 V to ±16 V, making it suitable for a variety of low‑power applications.
The datasheet provides absolute maximum ratings, electrical characteristics, and application examples, including guidelines for circuit layout, handling under strong electromagnetic fields, and usage with output capacitors. Contact information for ROHM sales offices worldwide is also included.
| Supply Voltage (Dual) | +1.5 V to +16.0 V |
|---|---|
| Power Dissipation | 450 mW |
| Input Offset Voltage (typ) | 2 mV |
| Large Signal Voltage Gain (typ) | 100 V/mV |
The typical input offset voltage is 2 mV.
