The LM-1256 series are 16 × 16 matrix displays which can be used in a wide variety of applications, including alpha- bet, numeric, symbol, and red are available.
The LM-1256 Series is a 16 × 16 dot‑matrix LED display intended for alphanumeric and symbolic output. It uses circular red emitters and is supplied in a black 32 × 32 × 5.4 mm package.

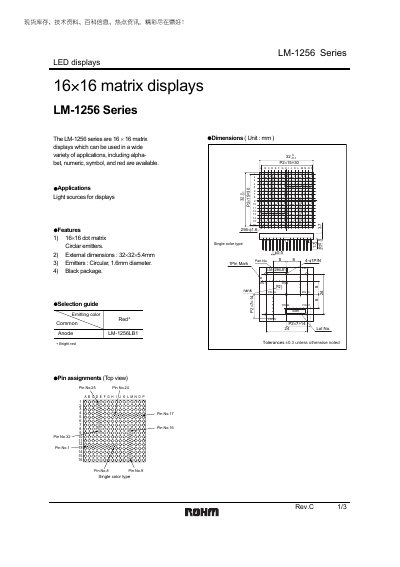

This datasheet provides the external dimensions, pin assignments, internal circuit schematic, absolute maximum ratings, and electrical and optical characteristics such as forward voltage, current, and luminous intensity. Application notes and export control information are also included. This manual is written in Chinese.
| Matrix size | 16 × 16 |
|---|---|
| External dimensions | 32 × 32 × 5.4 mm |
| Emitter diameter | 1.6 mm |
| Maximum forward current | 20 mA |
It is a 16 × 16 dot‑matrix display.
The package measures 32 × 32 × 5.4 mm.
