This document introduces the design purposes and applicable range of some products, especially emphasizing the reliability and safety of the products. It also mentions the confidentiality of technical information and possible changes. It also includes some application circuit examples and precautions.

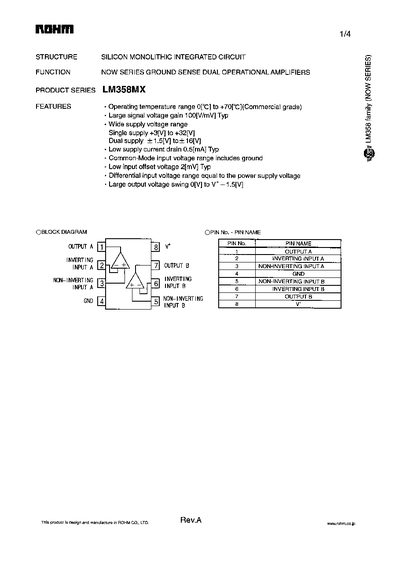

The LM358MX dual operational amplifier offers a wide single‑supply range of +3 V to +32 V and a dual‑supply range of +1.5 V to +16 V, making it suitable for many low‑power applications. It features a typical voltage gain of 100 V/mV, low input offset voltage (2 mV typical), and low supply current drain (0.5 mA typical) while operating from –40 °C to +70 °C.
The datasheet includes pin configurations, absolute maximum ratings, detailed electrical characteristics, and application examples such as disabled‑circuit handling and output stage considerations. Contact information for ROHM sales offices worldwide is also provided.
| Supply Current (typical) | 0.5 mA |
|---|---|
| Input Offset Voltage (typical) | 2 mV |
| Large Signal Voltage Gain (typical) | 100 V/mV |
The typical input offset voltage is 2 mV.
Typical supply current drain is 0.5 mA.
