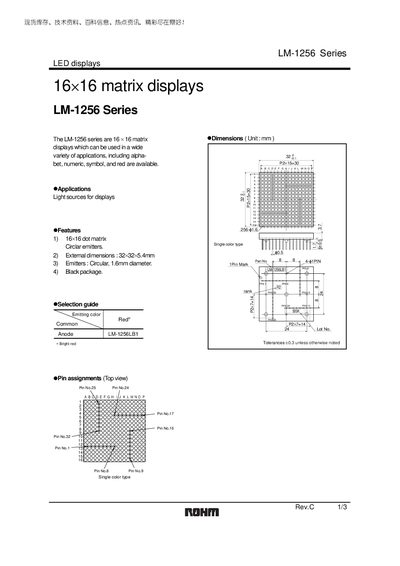

The LM-1256 series are 16*16 matrix displays which can be used in a wide variety of applications, including alpha-bet, numeric, symbol, and graphic dis- plays.
The LM-1256 series are 16 × 16 matrix LED displays (unit: mm) offered in red color. They are suitable for a wide range of applications such as alphanumeric, numeric, and symbol displays.
The document contains a pin‑assignment table, absolute maximum ratings, electrical and optical characteristics, luminous intensity data, and an appendix with legal and usage notes. It also includes a brief internal circuit schematic and selection guide for designers.
| Matrix size | 16 × 16 dot matrix |
|---|---|
| External dimensions | 32 × 32 × 5.4 mm |
| Emitter type | Circular, 1.6 mm diameter |
| Power dissipation | 50 mW |
| Forward current (per dot) | 20 mA |
| Peak forward current (pulse) | 60 mA (1/16 duty) |
| Reverse voltage | 4 V |
| Operating temperature range | -20 °C to +50 °C |
| Storage temperature range | -30 °C to +75 °C |
| Forward voltage (20 mA) | Typical 1.75 V, Max 25 V |
| Luminous intensity (Red) | Min 22 cd, Typical 56 cd |
The typical forward voltage is 1.75 V (maximum 25 V).
The device can dissipate up to 50 mW.
It operates from –20 °C to +50 °C.
The red type provides a minimum of 22 cd and a typical value of 56 cd.
