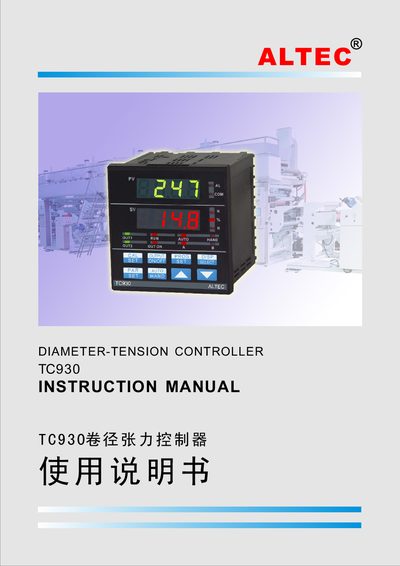

This document introduces the features, installation, electrical connection, panel introduction, tension system operation, and roll diameter tension control of the ALTEC TC930 tension controller.
The TC930 is a digital diameter‑tension controller designed for paper, film, textile, rubber or thin‑steel roll processing. It automatically calculates roll diameter via encoder or proximity switch and adjusts output to maintain constant tension, supporting both automatic and manual modes.
The manual covers system overview, hardware specifications, installation steps, electrical connections, panel functions, tension system operation, and advanced features such as diameter‑output curve programming and cone‑tension control. This manual is written in Chinese.
| Output current range | 0–20 mA or 4–20 mA |
|---|---|
| Power supply voltage | 85–264 V |
| Communication interfaces | RS232 or RS485 |
| Output voltage options | 0–5 V, 0–10 V |
| Alarm relay capacity | 2 A / 250 V AC |
| Dimensions (W×H×D) | 96 mm × 96 mm × 100 mm |
| Operating temperature | 0 °C – 50 °C |
| Maximum output frequency | 15 kHz |
The controller can output either 0–20 mA or 4–20 mA.
It uses an adaptive switching power supply that accepts 85 V to 264 V.
Press the AUTO/HAND key to toggle between automatic and manual modes without disturbance.
The unit can be equipped with either an RS232 or an RS485 serial interface.
