TC808 Tension Controller Manual

The document is an instruction manual for a certain brand and model of set-top box, which introduces the features of the product.

Brand: Altec
Category: Industrial Supply
Document type: User Manual
Language: Chinese
Pages: 3
File format: PDF
File size: 139 KB
Published: 28 March, 2012
Updated: 01 October, 2023
MD5 checksum: A1FB5D69168B76D57A7E5B151CCE9336
PDF: TC808 Tension Controller Manual PDF

About this manual

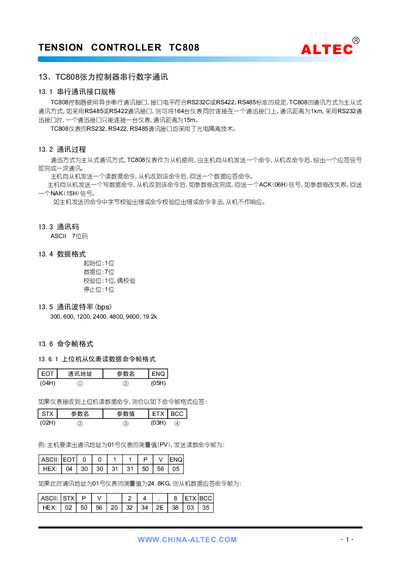

This manual describes the TC808 tension controller, covering its serial communication interfaces, data formats, and command structures. It includes detailed tables of parameters and their allowable ranges for configuration and monitoring.

The document specifies supported interfaces (RS232, RS422, RS485), baud rates, data framing, and the ACK/NAK response protocol for successful or failed parameter changes. A comprehensive parameter list is provided for measurement values, power settings, and control functions. This manual is written in Chinese.

What's inside

Serial Communication Interface Specification
Communication Protocol
Data Format
Baud Rates
Command Frame Format
Parameter List

Specifications

Supported baud rates	300, 600, 1200, 2400, 4800, 9600, 19.2k bps
Parity	Even
Communication interfaces	RS232, RS422, RS485

Frequently asked questions

What baud rates are supported by the TC808?

The controller supports 300, 600, 1200, 2400, 4800, 9600, and 19.2k bps.

What response does the TC808 send after a successful parameter change?

It returns an ACK (06H) signal.

What response does the TC808 send if a parameter change fails?

It returns a NAK (15H) signal.

Download PDF (139 KB)
