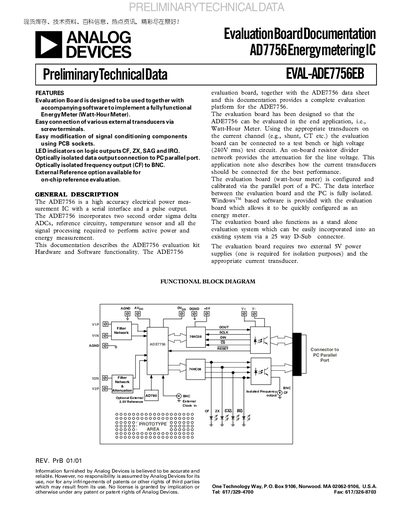

EVAL-ADE7756EB is designed to be used together with accompanying software to implement a fully functional Energy Meter (Watt-Hour Meter)
The ADE7756 evaluation board handbook describes the hardware features, analog input connections, and jumper configurations needed to build a functional watt‑hour meter. It explains how to connect current transducers (CT or shunt), voltage attenuation, and optional external reference.
The document also provides detailed instructions for installing the Windows‑based evaluation software, calibrating the meter, using waveform sampling, and troubleshooting. All procedures are illustrated with diagrams and jumper tables.
| Maximum analog input range (Channel 1) | 1 V |
|---|---|
| Maximum peak differential signal (Channel 1) | 0.5 V |
| Full‑scale differential input (Channel 2) | 0.5 V |
| External reference voltage | 2.5 V |
| Shunt current rating | 70 A rms |
| Maximum signal level permissible at V2P | 1 V peak |
The board requires two external 5 V power supplies, one of which provides isolation.
It connects via a parallel‑port cable; the cable should be no longer than 2 m (6 ft).
