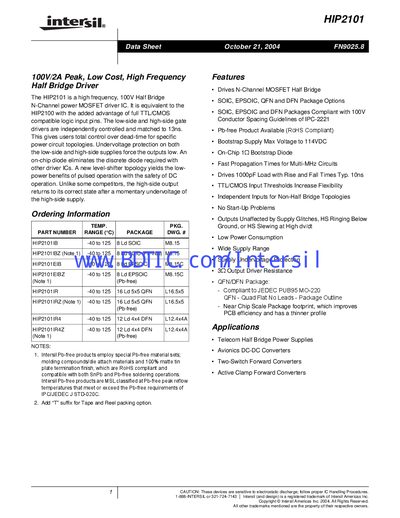

Intersil HIP2101 Half Bridge Driver Datasheet

About this manual

The HIP2101 is a high‑frequency, 100 V half‑bridge N‑Channel MOSFET driver IC with TTL/CMOS compatible inputs and independent low‑side and high‑side gate drivers. It includes an on‑chip bootstrap diode and offers full control over dead‑time for various power topologies.

Key features include multiple package options (SOIC, EPSOIC, QFN, DFN), a bootstrap supply rating up to 114 VDC, typical rise/fall times of 10 ns into 1000 pF loads, and RoHS‑compliant Pb‑free versions. The device is suited for telecom half‑bridge power supplies, avionics DC‑DC converters, and forward‑converter designs.

What's inside

• Features
• Ordering Information
• Pinouts
• Functional Block Diagram
• Absolute Maximum Ratings
• Maximum Recommended Operating Conditions
• Thermal Information
• Electrical Specifications
• Pin Descriptions
• Typical Performance Curves

Specifications

Frequently asked questions

Which package types are offered for the HIP2101?

The HIP2101 is available in SOIC, EPSOIC, QFN, and DFN packages.

Does the HIP2101 include a bootstrap diode?

Yes, the device has an on‑chip bootstrap diode.

What are the typical rise and fall times for a 1000 pF load?

Typical rise and fall times are about 10 ns when driving a 1000 pF load.
