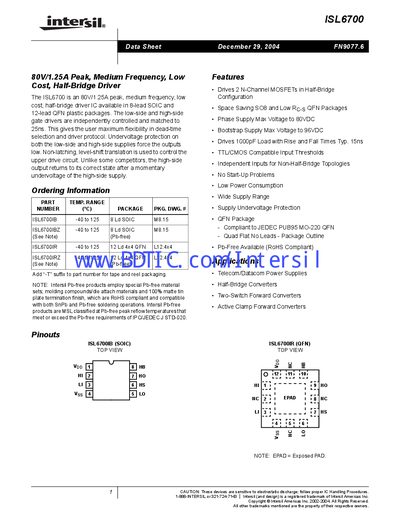

The ISL6700 is an 80V/1.25A peak, medium frequency, low cost, half-bridge driver IC. It is available in 8-lead SOIC and 12-lead QFN plastic packages. The low-side and high-side gate drivers are independently controlled and matched to 25ns. This gives the user maximum flexibility in dead-time selection and driver protocol. Undervoltage protection on both the low-side and high-side supplies force the outputs low. Non-latching, level-shift translation is used to control the upper drive circuit. Unlike some competitors, the high-side output returns to its correct state after a momentary undervoltage of the high-side supply.
The ISL6700 half‑bridge driver IC provides independent low‑side and high‑side gate control with fast 15 ns rise/fall times and built‑in undervoltage protection. It is offered in 8‑lead SOIC and 12‑lead QFN plastic packages for compact designs.
Key features include 80 V peak supply voltage, 1.4 A peak pull‑up current, and RoHS‑compliant Pb‑free options. Detailed electrical specifications, thermal data, and package dimensions are provided for design engineers.
| Peak Supply Voltage | 80 V |
|---|---|
| Junction Temperature Range | -40 °C to +150 °C |
| Typical Rise/Fall Time | 15 ns |
It is available in 8‑lead SOIC and 12‑lead QFN plastic packages.
Yes, it has undervoltage protection on both low‑side and high‑side supplies that force the outputs low.
Typical turn‑on propagation delay is about 75 ns and turn‑off delay about 60 ns.
