82c88 cmos bus controller is a high performance product manufactured using self-aligned silicon gate cmos process (scaled saji iv). the 82c88 provides the control and command timing signals for 80c86, 80c88, 8086, 8088, 8089, 80186 and 80188 based systems. the high output drive capability of the 82c88 eliminates the need for additional bus drivers. static cmos circuit design insures low operating power. the intersil advanced saji i v process results in performance equal to or greater than existing equivalent products at a significant power savings.
The Intersil 82C88 is a high‑performance CMOS Bus Controller designed for 80C86/80C88, 8086/8088, 8089, 80186/80188 based systems. It offers three‑state command outputs, bipolar drive capability, and operates from a single 5 V supply with low power consumption.

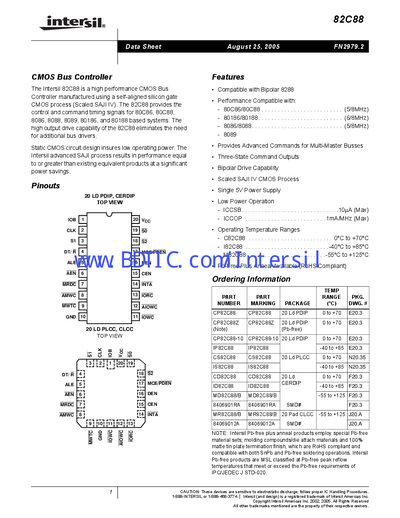

The document includes pin‑out diagrams, functional descriptions, electrical and thermal specifications, timing requirements, test circuits, and package information for various 20‑lead PDIP, PLCC and CERDIP options.
| Operating Voltage Range | +4.5 V to +5.5 V |
|---|---|
| Supply Voltage (Maximum) | +8.0 V |
| Input Leakage Current | -1.0 pA to 1.0 pA |
| Package Types | 20‑lead PDIP, PLCC, CERDIP |
The device operates from +4.5 V to +5.5 V.
The 82C88 is offered in 20‑lead PDIP, PLCC, and CERDIP packages.
Input leakage current is specified as –1.0 pA to 1.0 pA.
