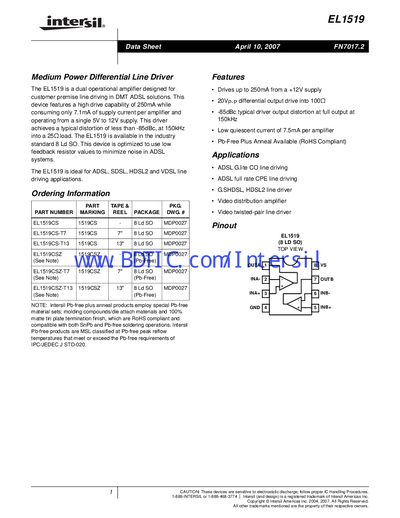

The EL1519 is a dual operational amplifier designed for customer premise line driving in DMT ADSL solutions. This device features a high drive capability of 250mA while consuming only 7.1mA of supply current per amplifier and operating from a single 5V to 12V supply. This driver achieves a typical distortion of less than -85dBc, at 150kHz into a 25Ω load. The EL1519 is available in the industry standard 8 Ld SO. This device is optimized to use low feedback resistor values to minimize noise in ADSL systems. The EL1519 is ideal for ADSL, SDSL, HDSL2 and VDSL line driving applications.
The EL1519 is a dual operational amplifier designed for customer‑premise line driving in DMT ADSL solutions. It offers a high drive capability of up to 250 mA per amplifier, low quiescent current, and typical distortion below –85 dBc at 150 kHz. The device is supplied in an 8‑lead SO package and is RoHS‑compliant.
The document includes absolute maximum ratings, detailed electrical specifications, typical performance curves, layout recommendations, and application notes such as ADSL CPE line driving. It also provides ordering information, package dimensions, and guidance on supply voltage ranges and single‑supply operation.
| Maximum Output Current | 250 mA per amplifier |
|---|---|
| Quiescent Current | 7.5 mA per amplifier |
| Differential Output Swing | 20 V p‑p into 1 kΩ |
| Typical Distortion | < –85 dBc at 150 kHz |
| Supply Voltage Range | 5 V to 12 V (single supply) |
| -3 dB Bandwidth | 70 MHz |
The EL1519 can drive up to 250 mA per amplifier from a +12 V supply.
It typically provides distortion less than –85 dBc at 150 kHz.
The device operates from a single supply of 5 V up to 12 V (and can run from 2.5 V to 6 V for reduced bandwidth).
Each amplifier draws a low quiescent current of about 7.5 mA.
