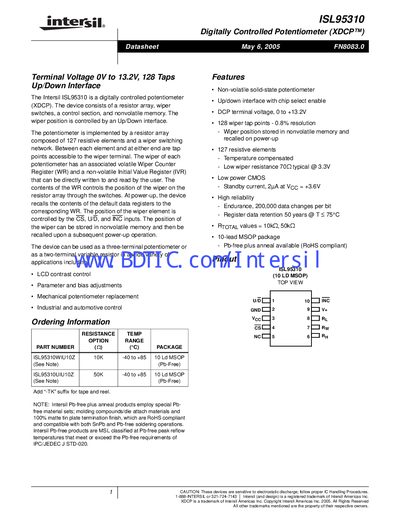

ISL95310 Digitally Controlled Potentiometer (XDCP™) Terminal Voltage 0V to 13.2V, 128 Taps Up/Down Interface
The ISL95310 is a digitally controlled potentiometer (XDCP) that integrates a 127‑element resistor array, wiper switches, control logic, and non‑volatile memory. The wiper position is set via an Up/Down interface and can be stored in non‑volatile memory for recall on power‑up.
Key features include a 0‑to‑+13.2 V terminal voltage range, 128 tap points with 0.8 % resolution, low standby current, and a 10‑lead MSOP package. The datasheet details absolute maximum ratings, recommended operating conditions, pin functions, and programming instructions for reliable integration into industrial and automotive control applications.
| Terminal voltage range | 0 to +13.2 V |
|---|---|
| Wiper resistance | 70 Ω typical @ 3.3 V |
| Standby current | 2 µA at Voc = +3.6 V |
| Endurance (data changes) | 200,000 per bit |
| Data retention | 50 years @ T < 75 °C |
| Number of tap points | 128 (0.8 % resolution) |
| Resistive elements in array | 127 |
| Package type | 10‑lead MSOP |
The DCP terminal voltage ranges from 0 to +13.2 V.
It provides 128 wiper tap points with 0.8 % resolution.
Standby current is 2 µA at Voc = +3.6 V.
The register retains data for 50 years at temperatures below 75 °C.
