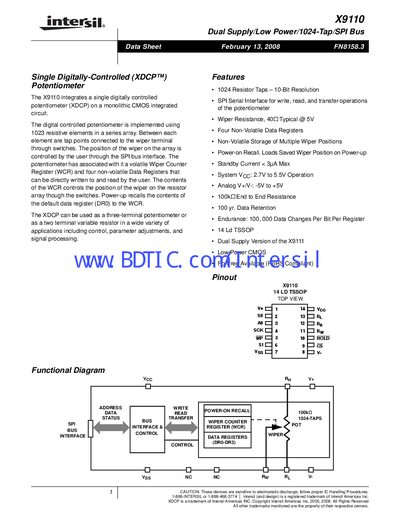

This is Intersil X9110 1024-Tap/SPI Bus Single Digitally-Controlled (XDCP™) Potentiometer datasheet.
The Intersil X9110 integrates a single digitally‑controlled potentiometer (XDCP) on a CMOS IC. It offers 1024 resistor taps for 10‑bit resolution, a SPI serial interface, and both volatile and non‑volatile registers for storing wiper positions. The device operates from 2.7 V to 5.5 V (system VCC) with analog supplies of –5 V to +5 V and a typical wiper resistance of 40 Ω at 5 V.
Typical applications include gain control for amplifiers, programmable references, audio volume control, offset trimming, and sensor signal conditioning. The datasheet provides pin descriptions, functional diagrams, instruction sets, and package dimensions for the 14‑lead TSSOP version.
| Resistor taps | 1024 |
|---|---|
| Resolution | 10-bit |
| Standby current | < 3 µA max |
| System supply voltage (VCC) | 2.7 V to 5.5 V |
| Analog supply voltage (V+/V-) | -5 V to +5 V |
| Package type | 14‑lead TSSOP |
| Non‑volatile data registers | Four |
| Data retention | 100 years |
| Endurance | 100 000 data changes per bit per register |
The standby current is less than 3 µA (max).
The device includes four non‑volatile data registers.
The X9110 provides 1024 taps, giving a 10‑bit resolution.
