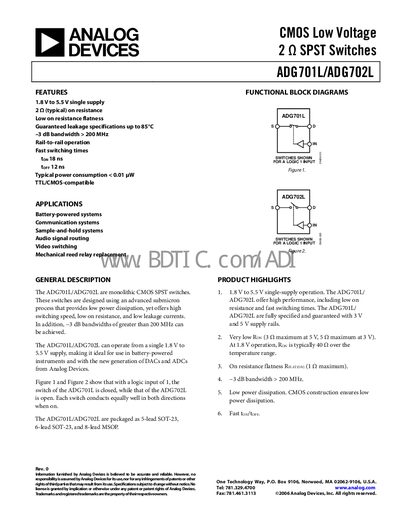

ADG701L/ADG702L are monolithic CMOS SPST switches. These switches are designed using an advanced submicron process that provides low power dissipation, yet offers high switching speed, low on resistance, and low leakage currents.
The ADG701L and ADG702L are monolithic CMOS single‑pole single‑throw (SPST) switches designed for low‑power, high‑speed applications. They operate from a single 1.8 V to 5.5 V supply and are offered in 5‑lead SOT‑23, 6‑lead SOT‑23, and 8‑lead MSOP packages.
The document provides detailed electrical specifications, absolute maximum ratings, pin configurations, typical performance curves, and an ordering guide for the various package options.
| Supply voltage range | 1.8 V to 5.5 V single supply |
|---|---|
| -3 dB bandwidth | > 200 MHz |
| Typical power consumption | < 0.01 pW |
| Input high voltage (Vint) | 2.0 V min |
The devices operate from a single 1.8 V to 5.5 V supply.
The -3 dB bandwidth is greater than 200 MHz.
They are offered in 5‑lead SOT‑23, 6‑lead SOT‑23, and 8‑lead MSOP packages.
