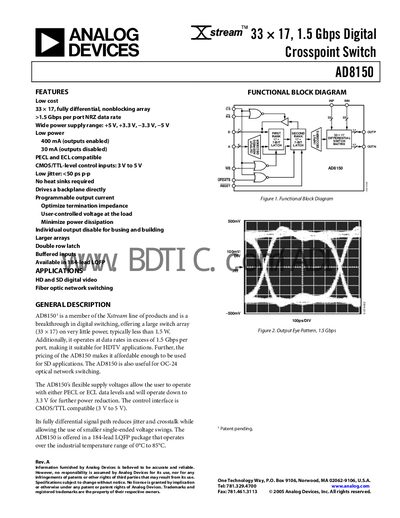

AD8150 is a 33 × 17, fully differential, nonblocking array with >1.5 Gbps per port NRZ data rate. It features low cost, low power, wide power supply range, low jitter, and no heat sinks required.
The AD8150 crosspoint switch from Analog Devices provides a 33 × 17 non‑blocking array that operates at data rates up to 15 Gbps per channel. It supports a wide supply range (3.3 V‑5 V) and offers low jitter (<50 ps p‑p) without requiring heat sinks.
The device is supplied in a 184‑lead LQFP package, works over an industrial temperature range, and includes programmable output current, individual output disable, and a user‑controlled load voltage. Detailed pin configurations, control interface timing, and application notes are provided for system integration.
| Maximum Data Rate per Channel (NRZ) | 15 Gbps |
|---|---|
| Channel Jitter (Data Rate <1.5 Gbps) | 50 ps p‑p |
| RMS Channel Jitter (VEE=5 V) | 10 ps |
| Propagation Delay (Input to Output) | 650 ps |
| Output Rise/Fall Time (20‑80%) | 100 ps |
| Input Voltage Swing Differential | 200‑1000 mV p‑p |
| Input Bias Current | 2 pA |
| Input Capacitance | 2 pF |
| Output Voltage Swing Differential | 800 mV p‑p |
| Output Current | 5‑25 mA |
| Supply Voltage (Vop) | 3.3 V‑5 V |
| Quiescent Current (Vop, all outputs enabled) | 2 mA |
| Total Output Current (all outputs enabled) | 400 mA |
| Total Output Current (all outputs disabled) | 30 mA |
| Operating Temperature Range | 0 °C to 85 °C |
The AD8150 supports up to 15 Gbps per channel in NRZ mode.
The device operates from 3.3 V to 5 V on the Vop supply pins.
When all outputs are enabled the total current draw is about 400 mA.
The AD8150 is rated for industrial temperatures from 0 °C up to 85 °C.
