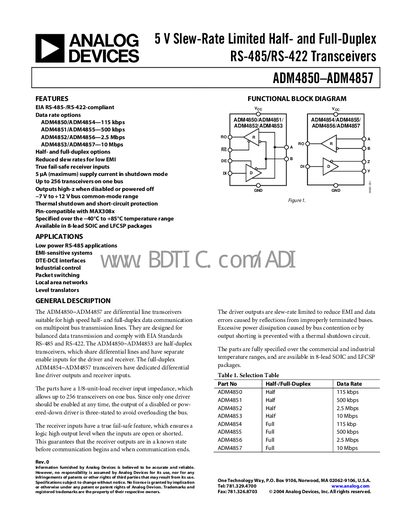

This PDF document is about the introduction of ADM4850-ADM4857 series products, including product features, characteristics, application scenarios, etc.
The ADM4850‑ADM4857 family are differential line transceivers for high‑speed half‑ and full‑duplex RS‑485/RS‑422 communication. They feature reduced slew‑rate for low EMI, true fail‑safe receiver inputs, and can support up to 256 devices on a single bus.
The document includes detailed electrical specifications, timing characteristics, absolute maximum ratings, pin‑out diagrams, test circuits, and an ordering guide for the various 8‑lead SOIC and LFCSP packages.
| Data Rate (ADM4850/ADM4854) | 115 kbps |
|---|---|
| Shutdown Mode Supply Current | 5 pA (max) |
| Operating Temperature Range | ‑40°C to +85°C |
| Package Types | 8‑lead SOIC and LFCSP |
| Receiver Input Impedance | 1/8‑unit‑load |
The ADM4854 supports a maximum data rate of 115 kbps.
Up to 256 transceivers can be connected to a single bus.
The shutdown mode current is limited to 5 pA (maximum).
The device is specified for operation from –40 °C to +85 °C.
