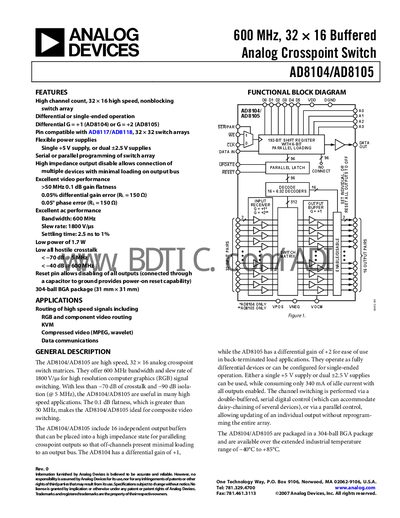

AD8104/AD8105 is a 600 MHz, 32×16 buffered analog crosspoint switch with features such as high channel count, differential or single-ended operation, flexible power supplies, and high impedance output disable.
The AD8104 and AD8105 are high‑speed 32 × 16 analog crosspoint switch matrices offering 600 MHz bandwidth and 1800 V/µs slew rate, suitable for high‑resolution video, KVM, and data communications. They support differential or single‑ended operation, with a differential gain of +1 (AD8104) or +2 (AD8105), and can be powered by a single +5 V supply or dual +2.5 V supplies.
Key specifications include a 304‑ball BGA package, operating temperature range of –40 °C to +85 °C, low power consumption (340 mA idle current), and flexible serial or parallel programming interfaces. The document also covers pin configuration, timing diagrams, absolute maximum ratings, and layout guidelines for parallel operation.
| Bandwidth | 600 MHz |
|---|---|
| Slew Rate | 1800 V/µs |
| Supply Current (outputs enabled, no load) | 340 mA |
| Supply Voltage Range | 4.5 V to 5.5 V |
| Operating Temperature Range | –40 °C to +85 °C |
| Package | 304‑ball BGA |
The device provides a 600 MHz bandwidth.
It can be powered by a single +5 V supply or by dual +2.5 V supplies.
The device operates from –40 °C to +85 °C.
It is supplied in a 304‑ball BGA package.
